Geodesic Dome Assembly
Erecting the Geodesic Dome. Photos May 2006.
-

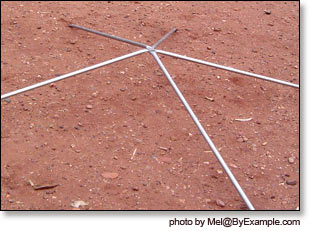

First, Connect Five A-Struts with a Bolt
-
The Five Arms Stand on their Own
-
Next Attach Five B-Struts to Make a Pentagon
-
Use a Bolt, Nut and Two Washers at Every Joint
-
Piecing the Dome Together from Pentagon Sections
-
Four Sections of the Dome in Place
-
Attaching the Fifth Pentagon Section to the Dome
-
Securing the Top of the Geodesic Dome
-
The Completed Frame of our Geodesic Dome
-
Create Six Pentagon Structures that Will Form into a Geodesic Dome
